Photo Series Product Name Download Varistor Voltage Maximum Allowable Voltage Maximum Clamping Voltage Rated Wattage Energy Withstanding Surge Current Dimensions Select
V 1mA (V) ACrms (V) DC (V) (V) (W) (J) 8x20μsec. (A) W H L

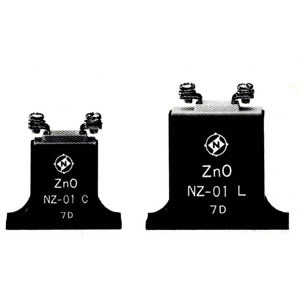

NZ-01C

240 (216-264) 150 200 395 (V100A) 0.8 95 8,000 48±1 (1.890±0.039) 42±1 (1.653±0.039) 39±1 (1.535±0.039)

NZ-02C

430 (387-473) 150 200 710 (V100A) 0.8 140 8,000 48±1(1.890±0.039) 42±1(1.653±0.039) 39±1 (1.535±0.039)

NZ-01L

240 (216-264) 150 200 395 (V200A) 1.2 240 25,000 60±1(2.362±0.039) 55±1(2.165±0.039) 51±1(2.008±0.039)

NZ-02L

430 (387-473) 275 350 710 (V200A) 1.2 400 25,000 60±1(2.362±0.039) 55±1(2.165±0.039) 51±1(2.008±0.039)

NZ-04L

820 (738-902) 510 670 1355 (V200A) 1.2 545 25,000 60±1(2.362±0.039) 55±1(2.165±0.039) 51±1(2.008±0.039)
