Photo Series Product Name Download Spec. Degree of protection Rated operation Voltage Un Max. Cont. operation Voltage Uc Nominal discharge current In (8/20μs) Maximum discharge current Imax (8/20μs) Protection level Up(1.2/50) Response time t Maximum backup fuse (gL) Status visual display Damping capability Leakage loss Connection wire Installation Housing protection degree IEC529 Operation temperature Select

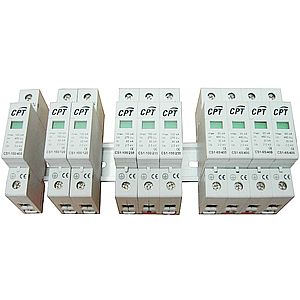

CS1

CS1 x 1

B+C 120 / 230 / 400 / 480 V~ 150 / 275 / 480 / 580 V~ 20 / 30 / 40 / 65 / 90 KA 40 / 65 / 80 / 100 / 130 KA 1.8 / 2.0 / 2.5 / 3.0 / 3.5 kV < 25 ns 63 / 80 / 100 / 125 / 160 A Green (normal)、Red (breakdown) < 58 dB < 1mA 5.5 / 22 mm2 DIN rail IP20 40 ℃ ~ +80 ℃

CS2

CS1 x 2 B+C 120 / 230 / 400 / 480 V~ 150 / 275 / 480 / 580 V~ 20 / 30 / 40 / 65 / 90 KA 40 / 65 / 80 / 100 / 130 KA 1.8 / 2.0 / 2.5 / 3.0 / 3.5 kV < 25 ns 63 / 80 / 100 / 125 / 160 A Green (normal)、Red (breakdown) < 58 dB < 1mA 5.5 / 22 mm2 DIN rail IP20 -40 ℃ ~ +80 ℃

CS3

CS1 x 3 B+C 120 / 230 / 400 / 480 V~ 150 / 275 / 480 / 580 V~ 20 / 30 / 40 / 65 / 90 KA 40 / 65 / 80 / 100 / 130 KA 1.8 / 2.0 / 2.5 / 3.0 / 3.5 kV < 25 ns 63 / 80 / 100 / 125 / 160 A Green (normal)、Red (breakdown) < 58 dB < 1mA 5.5 / 22 mm2 DIN rail IP20 -40 ℃ ~ +80 ℃

CS4

CS1 x 4 B+C 120 / 230 / 400 / 480 V~ 150 / 275 / 480 / 580 V~ 20 / 30 / 40 / 65 / 90 KA 40 / 65 / 80 / 100 / 130 KA 1.8 / 2.0 / 2.5 / 3.0 / 3.5 kV < 25 ns 63 / 80 / 100 / 125 / 160 A Green (normal)、Red (breakdown) < 58 dB < 1mA 5.5 / 22 mm2 DIN rail IP20 -40 ℃ ~ +80 ℃
