Photo Series Product Name Download Maximum service voltage (50/60Hz) Protection level (1.2/50) Maximum discharge current (8/20us) Maximum discharge current (8/20us) Maximum discharge current (8/20us) Nominal discharge current (8/20us) Series protection current (include) Maximum backup fuse (gL) ANSI/IEEE C62.41 Response time ta＜ Monitoring flag EMI/RFI ( >) Insertion loss (＜) Continuous operating current (＜) Protection category Maximun connection wire Operating temperature range Dimensions (mm) Voltage range (ac/dc) Compliance with standards Select

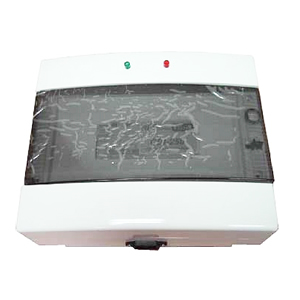

PSE-100/32

110/220V 2.0 KV 100 KA 200 KA 400 KA 30 KA 32 A

32 A

 1.2/50μs 20KV , 8/20μs 10KA 25 ns Yes 50 dB (99.7%) 100K ~ 1MHz 0.15 dB 1 mA IP 20 5.5/8mm2 -40℃…+80℃ 255(h) x 280(w) x 90(d) √2 xUc NFC61-740 IEC 61643-1 BS 6651 VDE 0675-6

PSE-65/32

110/220V 2.0 KV 65 KA 130 KA 260 KA 32 A 32 A 32 A

1.2/50μs 20KV , 8/20μs 10KA

 25 ns Yes 50 dB (99.7%) 100K ~ 1MHz 0.15 dB 1 mA IP 20 5.5/8 mm2 -40℃…+80℃ 255(h) x 280(w) x 90(d) √2 xUc NFC61-740 IEC 61643-1 BS 6651 VDE 0675-6

PSE-40/32

110/220V 2.0 KV 40 KA 80 KA 160 KA 15 KA 32 A 32 A 1.2/50μs 20KV , 8/20μs 10KA 25 ns Yes 50 dB (99.7%) 100K ~ 1MHz 0.15 dB 1 mA IP 20 5.5/8 mm2 -40℃…+80℃ 255(h) x 280(w) x 90(d) √2 xUc NFC61-740 IEC 61643-1 BS 6651 VDE 0675-6

PSE-15/32

110/220V 2.0 KV 15 KA 30 KA 60 KA 5 KA 32 A 32 A 1.2/50μs 20KV , 8/20μs 10KA 25 ns Yes 50 dB (99.7%) 100K ~ 1MHz 0.15 dB 1 mA IP 20 5.5/8 mm2 -40℃…+80℃ 255(h) x 280(w) x 90(d) √2 xUc NFC61-740 IEC 61643-1 BS 6651 VDE 0675-6
